Linear High Bay (Damp)


HBL

Linear High Bay (Damp)

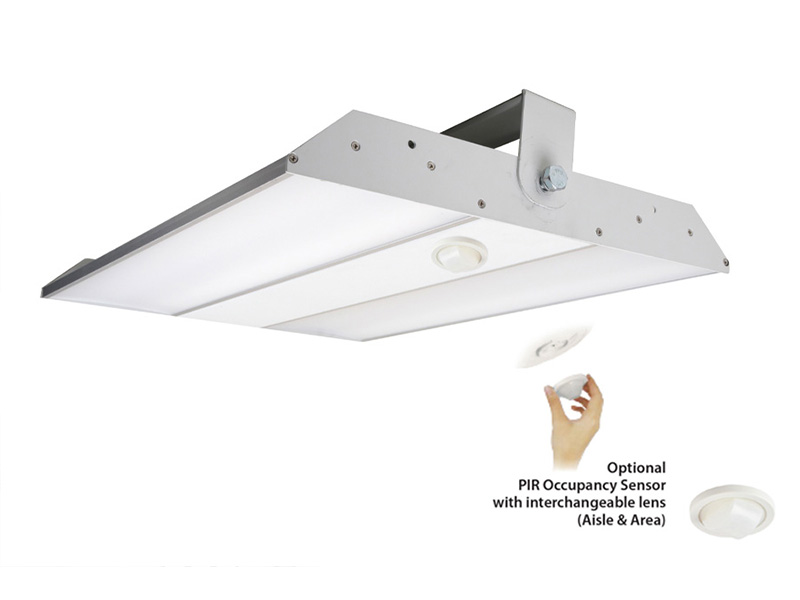

naturaLED® offers the perfect solution for your lighting needs with our Linear High/Low Bay. This new design allows us to optimize all the beneficial characteristics of LED light in a high-performance fixture that will endure many years of service. These Linear High Bays are extremely durable, yet lightweight, with excellent thermal design. Chain with lock link is included for mounting. A yoke mount is an available option for surface and pendant mounting at an additional cost. This product is a hybrid crossover, which makes it an excellent fixture for new construction and/or as a replacement solution for your existing High/Low Bays needs.

SKU Wattage CCT Product Description Lumens Voltage Equivalent
Wattage		 Size Color Certification
7407 77W 5000K LED-FXHBL75/22FR/850 10,229 120-277V 250W 16"x22" White Damp
Location
7409 100W 5000K LED-FXHBL100/22FR/850 13,430 120-277V 400W 16"x22" White Damp
Location
7410 154W 4000K LED-FXHBL150/22FR/840 20,0112 120-277V 400-575W 16"x22" White Damp
Location
9285 150W 4000K LED-FXHBL150/44FR/840 20,032 120-277V 400W 16"x44" White Damp
Location
7442 162W 4000K LED-FXHBL162/22FR/840 17,310 120-277V 400-575W 16"x22" Silver Damp
Location
7443 162W 5000K LED-FXHBL162/22FR/850 17,672 120-277V 400-575W 16"x22" Silver Damp
Location
9287 210W 4000K LED-FXHBL210/22FR/840 28,254 120-277V 575-1000W 16"x22" White Damp
Location
7412 207W 4000K LED-FXHBL210/44FR/840 28,254 120-277V 575-1000W 16"x44" White Damp
Location

Downloads

  • Spec Sheet View Download
  • Installation View Download
  • 7407 LED-FXHBL75/22FR/850
  • 7409 LED-FXHBL100/22FR/850
  • 7410 LED-FXHBL150/22FR/840
  • 9285 LED-FXHBL150/44FR/840
  • 7442 LED-FXHBL162/22FR/840
  • 7443 LED-FXHBL162/22FR/850
  • 9287 LED-FXHBL210/22FR/840
  • 7412 LED-FXHBL210/44FR/840

    • Accessories

    • Emergency Driver

      7334 BAEM15-48BC/MV-A
    • WireGuard

      P10094 WG-HBL22/WH
      P10095 WG-HBL44/WH

    • Yoke Mount

      P10092 MT-YK-HBL22
      P10093 MT-YK-HBL44
    • Sensor Lens (Recommended Height up to 30-ft)

      P10162 SEN-LRD-509-SFG (Aisle)
      P10163 SEN-LRD-509-SFC (Area)

    • Sensor Aisle Lens

      P10162 SEN-LRD-509-SFG
      P10256 SEN-ON-LRD-509-SFG

    • Sensor Area Lens

      P10163 SEN-LRD-509-SFC
      P10257 SEN-ON-LRD-509-SFC

    • Remote Programmer

      P10164 SEN-SRP280(#P10162,P10163,P10153)
      P10259 SEN-ON-SRP281(#P10256,P10257,P10258)
